Wiring up the layout

Up until about 20 years ago most O scale layouts were wired up using block control and toggle switches, very similar to layouts in smaller scales. Then, Lionel released Train Master Command Control (TMCC) and MTH released Digital Command System (DCS) and things changed. Both of those systems (which aren't directly compatible) operate much like a DCC system in that it isn't necessary to divide a layout into isolated blocks.

However, there are still advantages for doing so which include the ability to cut power to certain track to shut off the sound effects of engines parked on them; the ability to run conventional and command engines on the same layout in different sections without conflicting power signals; electrical troubleshooting; etc.

Most of this side of the layout will be one large electrical block all wired together because I doubt I could operate two or more trains on them at the same time. But, I did want the ability to kill power to various sections so that I could park several engines on the layout at once. So, each of the three sidings has its middle rail (hot) wired through a on/off toggle switch.

The main layout's bus wires are 14 gauge, and the track feeder wires are also 14 gauge. This is pretty robust wire and should be fine for such a small layout as mine. Per Lionel's own blog, they recommend 16g bus wires and 18g feeders wires which means my choices are a bit overkill. That is okay.

Using old flextrack is a real pain and requires a lot of finagling to assembly, frequently with a hammer. During the process the feeders I had attached to the underside of the rail would occasionally fall out. They snapped in once, but after that the rail spread enough that they wouldn't stay in after trying to jam them in multiple times. So, for a couple I also had to solder them in place from below. For others, I was more careful to to avoid unnecessary maneuvering of the track before attaching the wires.

All the same, if I discover a break in power in the future I can just solder a wire to the outside of the rail.

To remember where I dropped feeder wires I marked the locations with some beads painted either red or black and pinned to the track.

Then, I made a diagram of the layout to record this information on the off-chance that it might be useful someday. As can be seen I installed a LOT of feeders now, but I would prefer to avoid messing around under the layout in the future if there is a voltage drop. It doesn't show the isolated three sidings (in blue) because I haven't laid that track yet.

To join the feeders to the bus line I used 3M #560 insulation displacement connectors (IDC), otherwise known as "suitcase" connectors. Some people swear by them and others swear at them, but since I had a ton of them lying around I used them. I first confirmed on the 3M website that they were rated for 14 gauge wire on both sides.

The only complication is that because my mainline has multiple feeders to the same section of track there are places where the same rail is being fed from multiple connections to the bus wires. Normally this is a good thing, but with MTH's DCS system it can sometimes result in mixed-up signals. If you Google "MTH Star Wiring" you will find many pages online about it (including this one) and the solution around this is to make sure that each isolated section of track only has one set of feeders to it.

At this time I am not concerned with potential MTH DCS wiring problems. I don't have any DCS engines, and even if I did my layout is so small that the signals shouldn't get too confused. If it later proves to be a problem in the future I can deal with it then.

I do want the ability to use Lionel's Train Master Command Control so I will make sure that the inputs to my layout's wiring can be toggled for that, but I will discuss that more in the future.

The ends of the bus lines terminate at heavy duty, 20AMP block terminals. I found some 12-screw ones for less than $3 each on Amazon so I used them, though I doubt I will need all of those contacts. However, it gives me options for future wiring.

I also used caulk on the underside of the benchwork where the wires came through the plywood. This not only secured the wires further (in case Harrison wanted to yank them out) and it filled the hole up which would stop any glue mess from dripping down when I ballast the track later on.

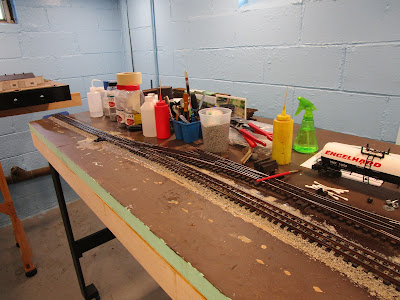

Organized chaos

Flextrack; cork roadbed; several types of caulk; caulking gun; Dremel tool; soldering iron station; lots of wire; various hand tools; multiple types of ballast; a couple of structure projects; various industry mock-ups; spray paint; glues; markers; assorted weights (gallon container, containers filled with lead shot); paper track templates; etc.

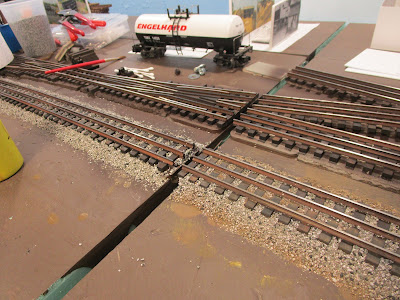

I love track laying, but it sure gets messy fast!

First track laid!

It's official! On 12/21/2024 the first track on the New England Northern Railway was laid.

I started off by first painting the cork roadbed with cheap flat gray latex paint so that any spots in the ballast later on wouldn't show up as brown. I don't really know if this helps because when I weather the track it will cover most the gray but it sounds good in theory.

Then, some like-new sections of Gargraves track were tested in place. To minimize cuts and gaps which require a bit more effort than trimming HO scale track, I worked from the edges of each section to the middle. I clamped a piece of black Gatorfoam to the edge of the layout and laid the track to that with just a tiny gap (to allow for any future expansion of the rails). My bandsaw and Dremel tool made quick work of cutting the track where necessary.

I quickly learned that Gargraves track is nearly impossible to bend if it isn't brand new. Even the slightest amount of oxidation will cause the wooden ties to bind on the rails. You can spray it with WD40 to loosen it up, but that will later cause havoc if you paint the track during weathering. Forcing the track to bend and then securing it every few inches with screws works, but I didn't want unsightly screws (and the 2" of foam would have required me to use 2.5" long deck screws to reach into the wooden table top under the foam). Since I am mostly working on straight track right now I am relying on heavy weights to hold it in place until the caulk cures.

Before I could glue the track down I had to also wire it up. While it is possible to solder electrical wires to the sides of the rails, one nifty trick is to use uninsulated male quick connect tabs and snap them into the underside of the Gargraves rails. I went with 14g wire for the feeders.

You also must drill holes in the cork for the wires to pass through before securing the track. It is a slightly fiddly process.

Gargraves track's wooden ties insulates the outside two return/ground rails from each other. This is advantageous for signals and accessories, but to ensure good electrical contact for the trains you want to power both rails. One way to do this is to solder jumpers between the two outer rails parallel with the ties. I was too lazy to dig out my soldering iron so instead I just dropped extra feeders. It also will avoid problems later on if I want to use one of the outer rails for triggering signals or accessories, as cutting the buried hidden feeders is near impossible.

Once I dry fitted everything to make sure it worked, I applied a layer of clear caulk and attached one piece of track down. I then heavily weighted it so it wouldn't budge. I ran out of weights pretty quick so I could only do one section of track at a time, but over the course of a weekend I laid the main line. It was a huge inefficiency in time, but I found it helpful because I wasn't used to working with Gargraves track before and I had to remember where to add feeders wires so the slow process was helpful. If I switches to long deck screws and washers I could use them between the ties and speed things up, and later pull the screws.

One benchwork joint required some light shimming with 0.030" styrene, that I caulked down and then flooded with superglue for extra security.

Three-rail switches have a lot of extra pieces of rail in the middle area, and their frogs are unpowered plastic. That means that when a locomotive is passing through a switch there are opportunities for it to stall out (especially the middle pick-up roller). Operating locomotives with middle pick-up rollers spread far apart avoids this. To address this potential problem, switches can be purchased from RCS with pre-wired jumpers to avoid stalling. Below is a pre-wired switch.

To be safe, I wanted the inner point rails also powered but many of the used switches I bought didn't have the jumpers, so I had to add them myself. Not having suitable solid core wire on hand, I used pieces of code 100 nickel silver HO scale rail. You can see two of them below, as well as an extra feeder wire I added as well.

After one weekend I had the 12' of mainline laid in place and I could start working on the passing siding. I couldn't believe how slow my progress was and how much more effort it took than HO track. I was learning new skills and also hamstringing myself by using caulk instead of screws to secure the track. But it was enjoyable too and Harrison had fun pushing a test boxcar along the track.
